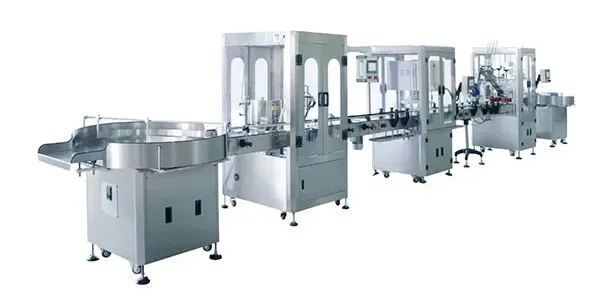

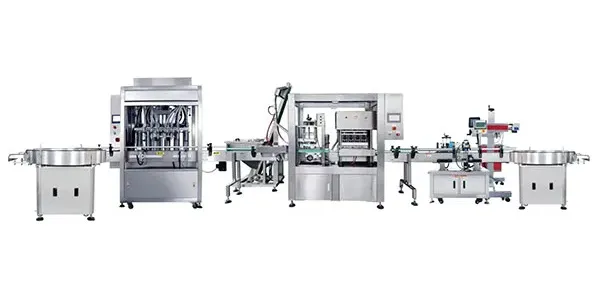

Automatic Bottling Line

    • Automatic Bottling Line

    This automatic bottling line integrates filling, capping, and labeling into a single system, enabling continuous automated production through the interconnection of multiple machines. The production line offers strong compatibility and can be adapted to a wide range of products by changing the filling method, from low-viscosity liquids to high-viscosity sauces as well as materials containing particles. It supports multiple packaging formats, including plastic bottles, glass bottles, and barrels. Customers can flexibly configure production solutions with different operating speeds according to their budget and production capacity requirements.

    Request a Quote
    Applicable Bottle Types

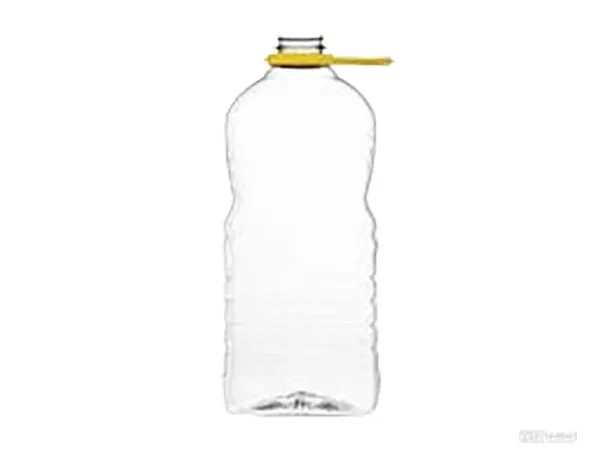

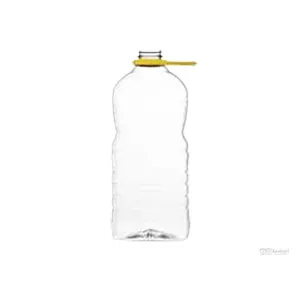

    BarrelBarrel

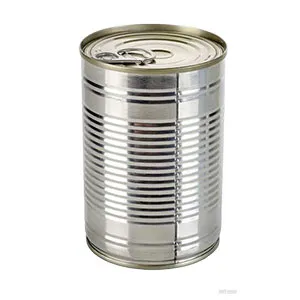

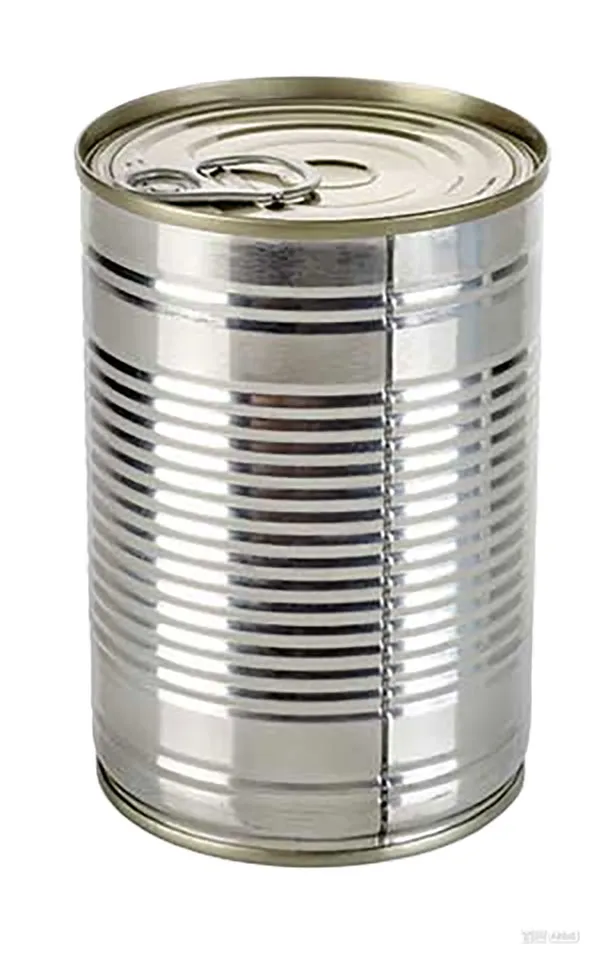

    CanCan

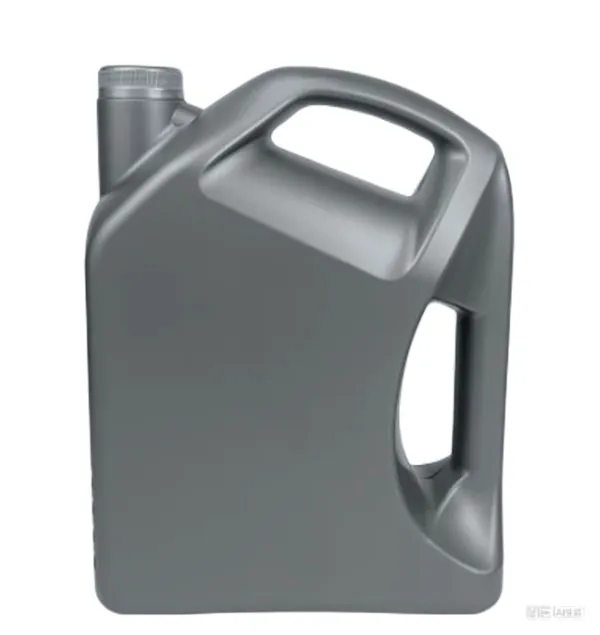

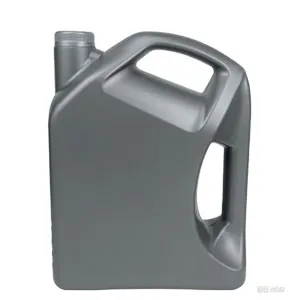

    Chemical bottleChemical bottle

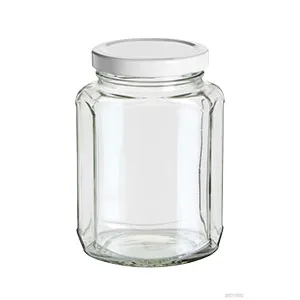

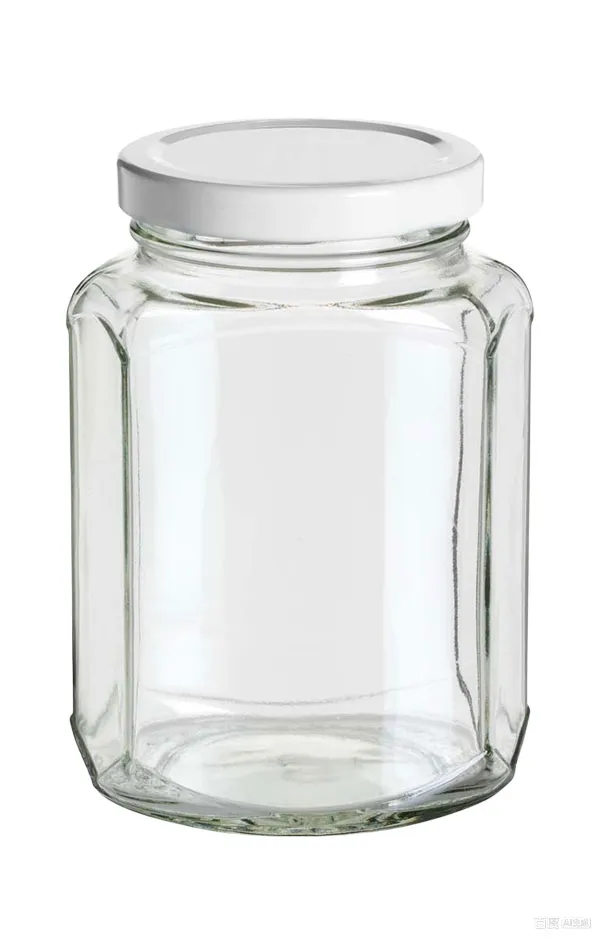

    JarJar

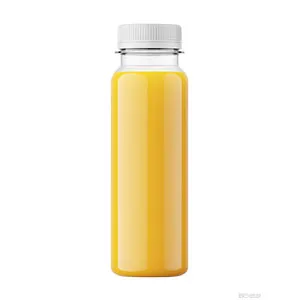

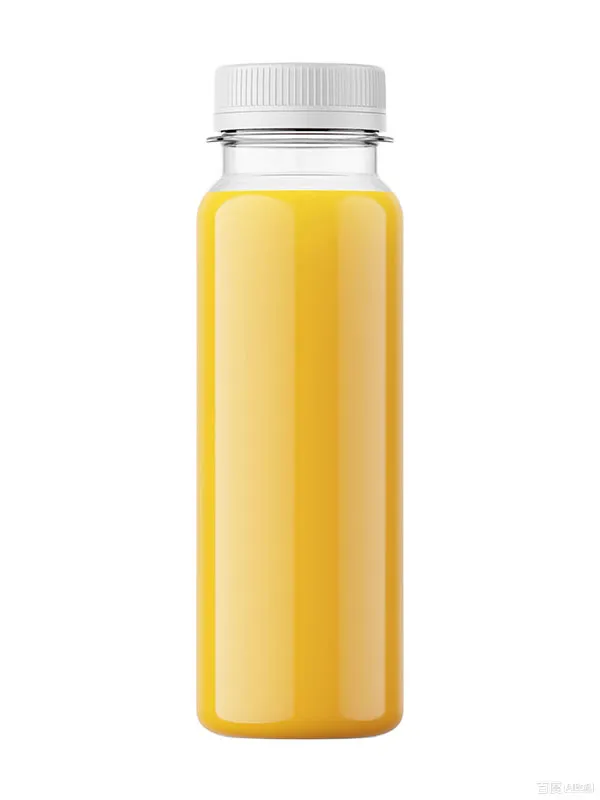

    Juice bottleJuice bottle
    Workflow

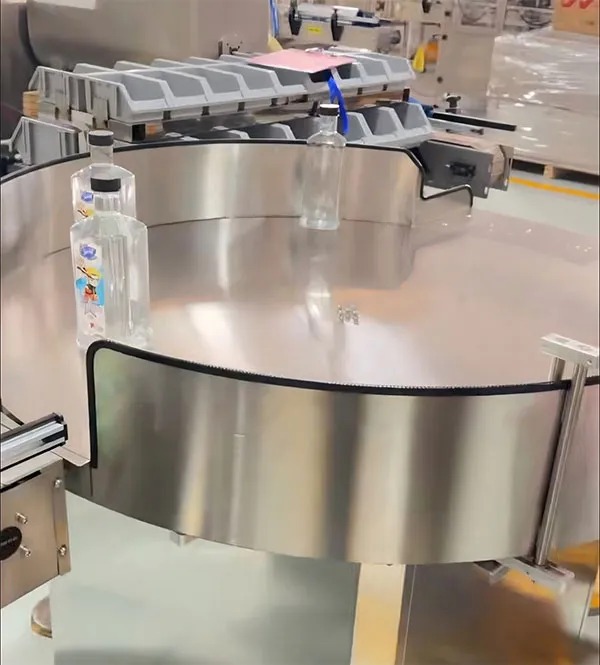

    Bottle unscramblingBottle unscrambling

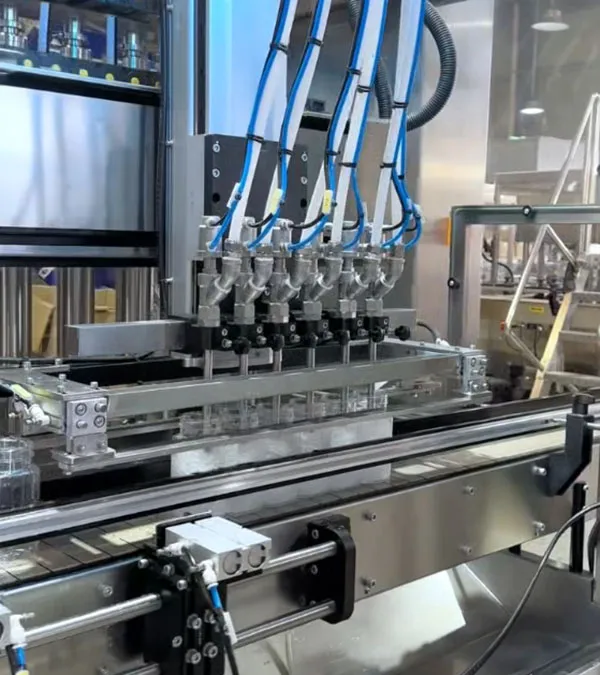

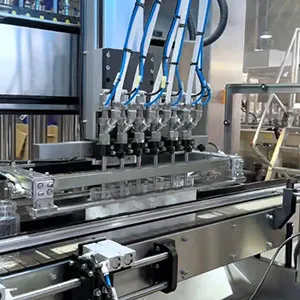

    FillingFilling

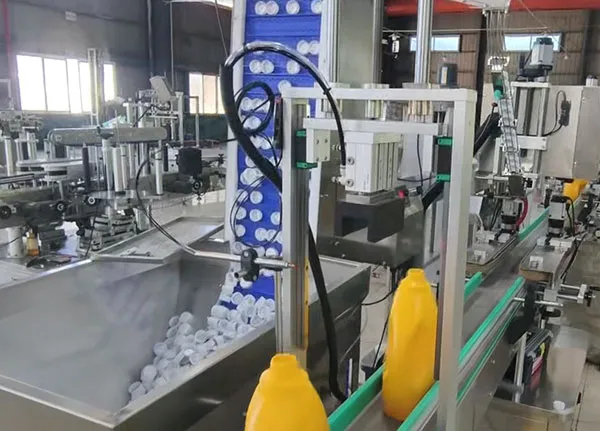

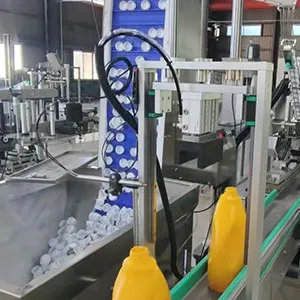

    Cap feedingCap feeding

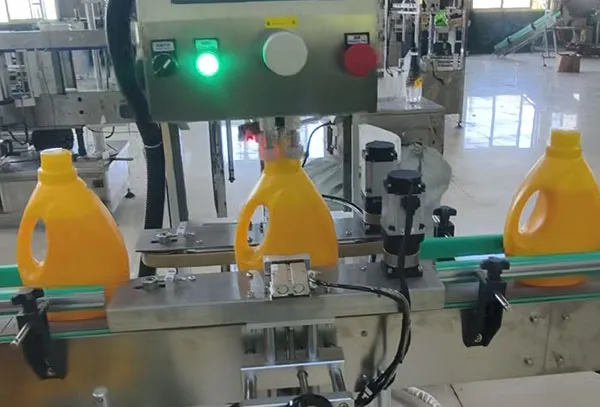

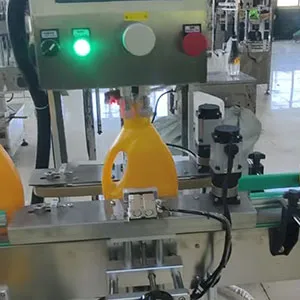

    CappingCapping

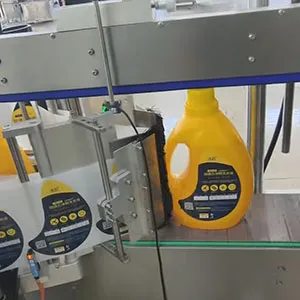

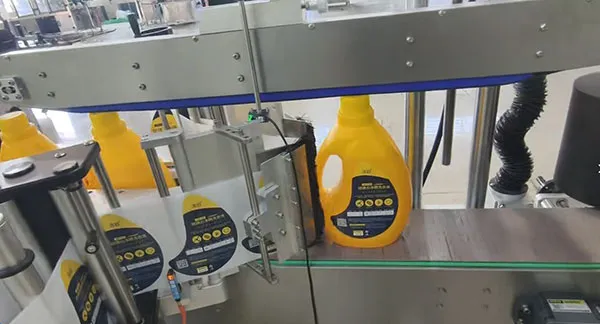

    LabellingLabelling

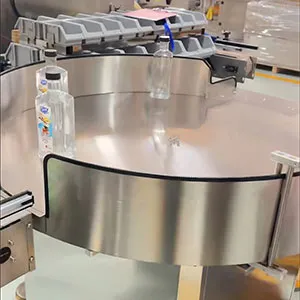

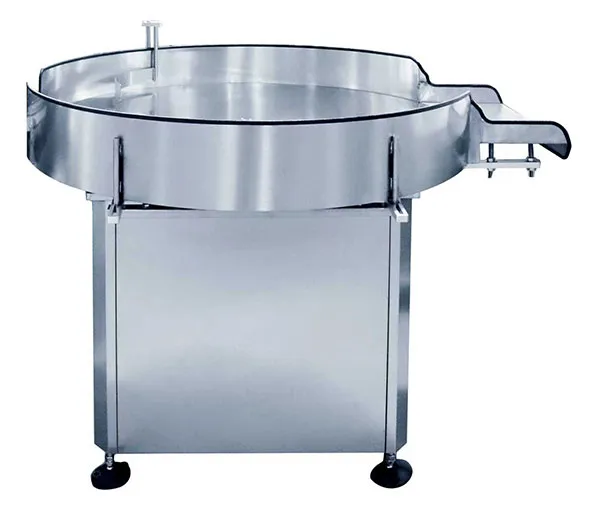

    Bottle arrangingBottle arranging
    Main Components

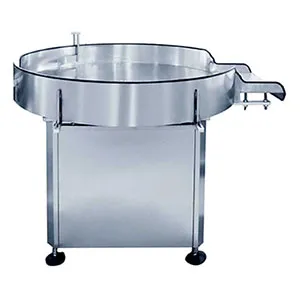

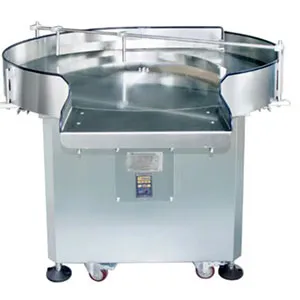

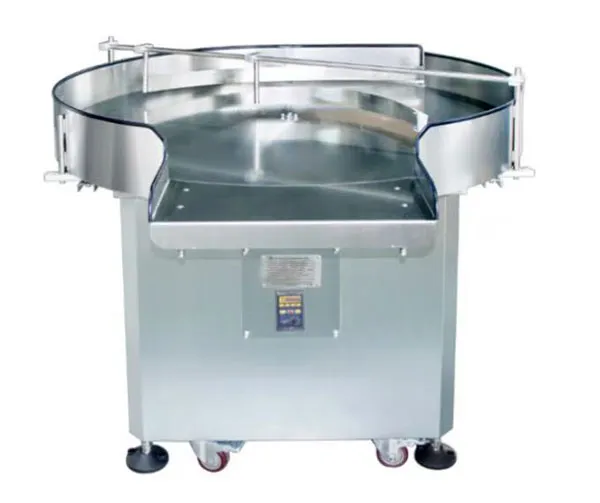

    Bottle unscramblerBottle unscrambler

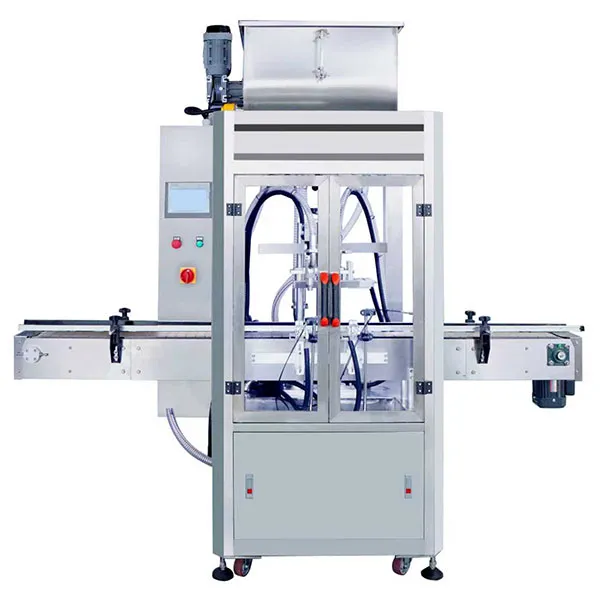

    Filling machineFilling machine

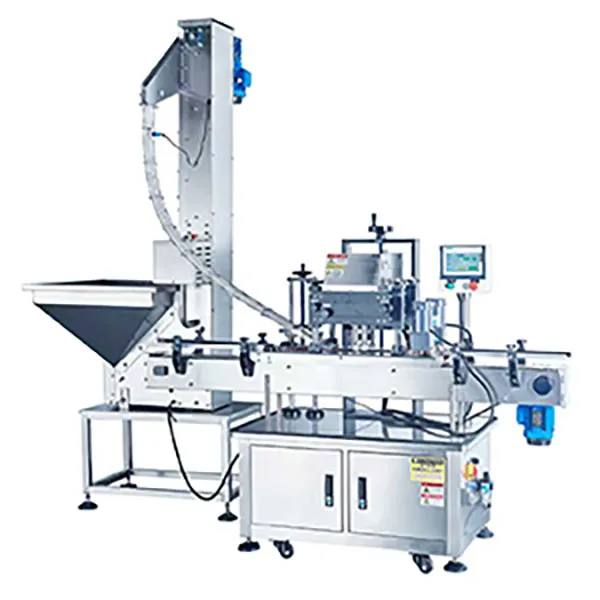

    Cap feeding & capping machineCap feeding & capping machine

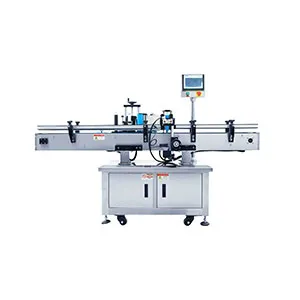

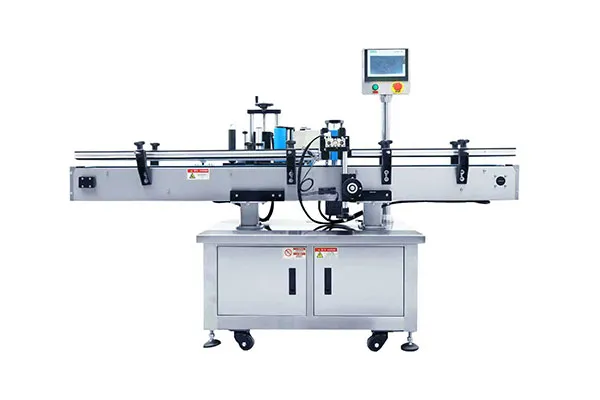

    Labeling machineLabeling machine
    Specifications
    Product Automatic Bottling Machine
    Applicable materials Water, juice, laundry liquid, detergent, oil, sauce, ketchup, jam, peanut butter, protein powder, nuts, freeze-dried fruit, pet food
    Filling methods Piston filling, rotor pump filling, screw filling, electronic weighing filling
    Packing speed 20–50 bottles/min
    Filling volume 20-5000ml
    Filling accuracy ±1%
    Control system Siemens PLC
    No. of filling heads 2-10 heads
    Machine material SUS 304
    Working air pressure 0.8 MPa
    Workflow Bottle unscrambling → filling → cap feeding & capping → labeling → bottle arranging
    Applications
      • Applications
      • Applications
      • Applications
      • Applications
      • Applications
      • Applications
      • Applications
      • Applications
    Application Videos

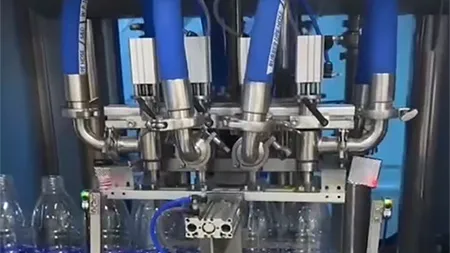

    Passion fruit juice filling
    Passion fruit juice filling

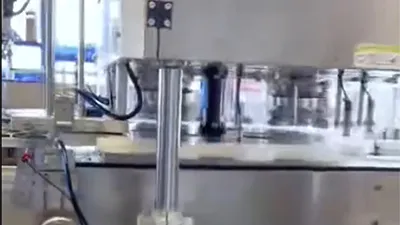

    Canned food filling
    Canned food filling

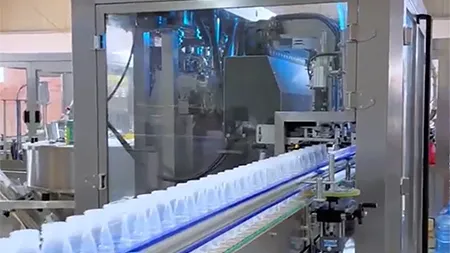

    Mineral water filling
    Mineral water filling

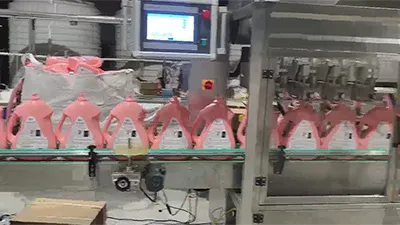

    Laundry detergent filling
    Laundry detergent filling
    In addition to the premade pouch packaging machines, we also supply various types of peripheral equipment to ensure a complete and efficient packaging solution.
    Pouch Packaging Machines
    Rotary Premade Pouch Packaging Machine
    Rotary Premade Pouch Packaging Machine
    Dual-Lane Rotary Premade Pouch Packaging Machine
    Dual-Lane Rotary Premade Pouch Packaging Machine
    Rotary Vacuum Premade Pouch Packaging Machine
    Rotary Vacuum Premade Pouch Packaging Machine
    All Products

    Yes, we use a customized bag-loading system designed to handle different pouch types. The machine can be equipped with optional features such as bottom opening for stand-up pouches and zipper opening mechanisms for zipper bags, allowing a single machine to pack multiple pouch formats efficiently.

    Yes, one machine can use different filling systems, such as a combination weigher for granules and an auger filler for powders.

    By adjusting parameters such as sealing temperature, sealing time, and cylinder pressure, the machine can be adapted to work with different bag materials.

    The machine maintains a weight accuracy of approximately ±1%. Actual performance may vary with material characteristics such as particle size, viscosity, and adhesion. For higher precision, an optional post-packaging checkweigher system can be integrated.

    Yes, it’s very convenient. The main adjustments include bag loading width, bag clamping width, and the bottom opening position (for stand-up pouches).

    • Bag Magazine Width: Adjusted via the spiral mechanism.
    • Bag Clamp Distance: Set through the touch screen interface on the WHR series fully automatic rotary premade pouch filling and sealing machine.

    Yes, customized solutions are available based on different materials and pouch types. Several optional features are available:

    • For granule materials, choose the bag bottom vibration feature.
    • For powder materials, use the bag opening dust removal function.
    • For liquid materials, select the rotary air blow function to clean the bag opening.
    • For spout pouches, use the specific loading method for spout bags.
    • For zipper bags, enable the zipper bag opening function.

    The WHR series fully automatic rotary premade pouch filling and sealing machine is suitable for packaging a variety of products, including:

    • Liquids: Beverages, juices, detergents, and more.
    • Powders: Laundry powder, milk powder, flour, and other dry goods.
    • Granules: Coffee beans, snacks, nuts, and more.
    • It can handle multiple types of premade pouches, including flat, spout, zipper, stand-up, and more.
